24kW Combi Boiler Wall Mounted With Two Rotary Knob For Outdoor
BEST SELLING
PRODUCT DESCRIPTION
With large LCD blue screen and all working condition is clear.
With two rotary knob design,meet with the preference of different customer.
With design of stable wind resistance and the boiler works stably even in bad weather.

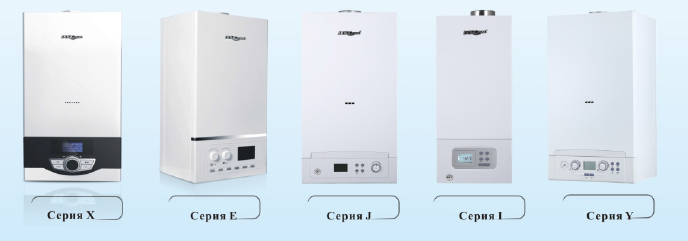

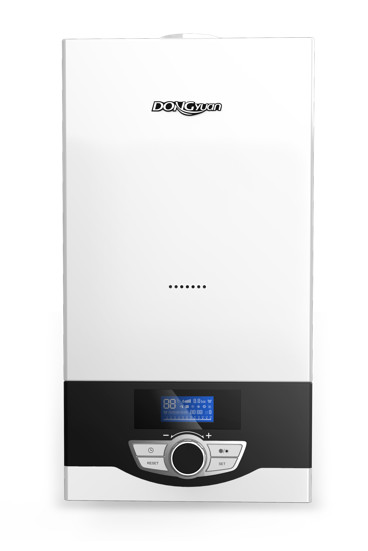

PRODUCT DISPLAY
TECHNICAL DATA
| Model Number | L1PB20 | L1PB24 |
| Gas Type | NG/LPG |
| Rated Gas Pressure(Pa) | 2000/2800 |
| Rated Gas Input(kw) | 20 | 24 |
| Rated Gas Output(kw) | 17.6 | 21.1 |
| Efficiency Under Rated Heat Input(%) | Above88% |
| Power Supply | 20-50HZ |
| Electric Power(W) | 110 | 110 |
| Temp.Range Of Heating Water(℃) | Radiator:30-80 Floor Heating:30-60 |
| Heating Area(㎡) | 80-160 | 100-200 |
| Lift Of pump(m) | 5 | 5 |
| Application Water Pressure(Mpa) | 0.1-0.3 |
| Expansion Tank Capacity(L) | 6 | 6 |
| Preset Pressure Of Expansion Vessel(Mpa) | 0.1 |
| Water Circulation Type | Airtight Forced Circulation |
| △T=25℃ Hot Water Supply(kg/min) | 10 | 12 |
| △T=30℃ Hot Water Supply(kg/min) | 8.3 | 10 |
| Temp.Range Of DHW Supply(℃) | 30-60 |
| Applicative Water Pressure(mpa) | 0.03-0.8 |
| The Minimum Starting Flow (L/min) | 2 |
| The Minimum Closed Flow(L/min) | 1.6 |
| Connections(mm) | For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2 |
| Air Input/Exhaust Duct(mm) | φ60/φ100 |
| The length Of Flue Dust(m) | 1 |
| Exhaust Type | Forced Exhaust |
| Ignition Type | Integrated Automatic Ignition |
| Temperature Control | Gas Proportional Adjustment
|

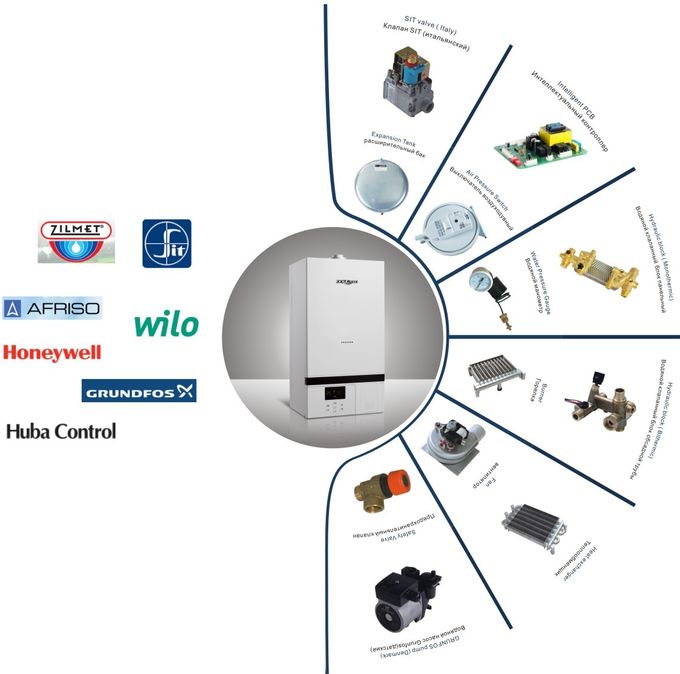

MAIN COMPONENTS

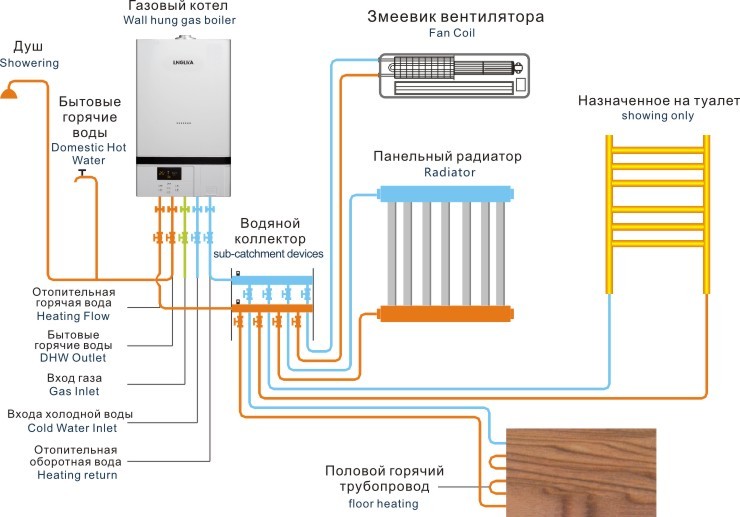

WORKING PRINCIPLE
COMPANY PROFILE
ABOUT US
Guangdong Dongyuan group was born in the 1990s. Its business areas include: gas appliance products, kitchenware, real estate, hotel catering
Dongyuan Gas Appliances Industrial Co., Ltd. was established in 2007 and began to enter the international market in 2010. By 2017, the annual sales volume of the company's wall-mounted furnace products had reached 300000 units
Dongyuan Thermal Technology Co., Ltd founded in 2018, is a high-tech enterprise focusing on the R & D, manufacturing and sales of gas appliances such as gas water heater, gas wall mounted furnace and gas module furnace.
Dongyuan thermal Technology Co., Ltd has 40000 square meters of self-owned plant, five most advanced gas appliance production lines in the industry, two commercial module boiler production lines, and China's leading authoritative laboratory. Equipped with an advanced computer automatic detection platform, automatic box feeding equipment, automatic packaging equipment, and automatic stacking equipment of KUKA manipulator, the annual production capacity can reach 600000 sets; The annual production capacity of gas water heater can reach 900000 units, and the products sell well in domestic and foreign markets.

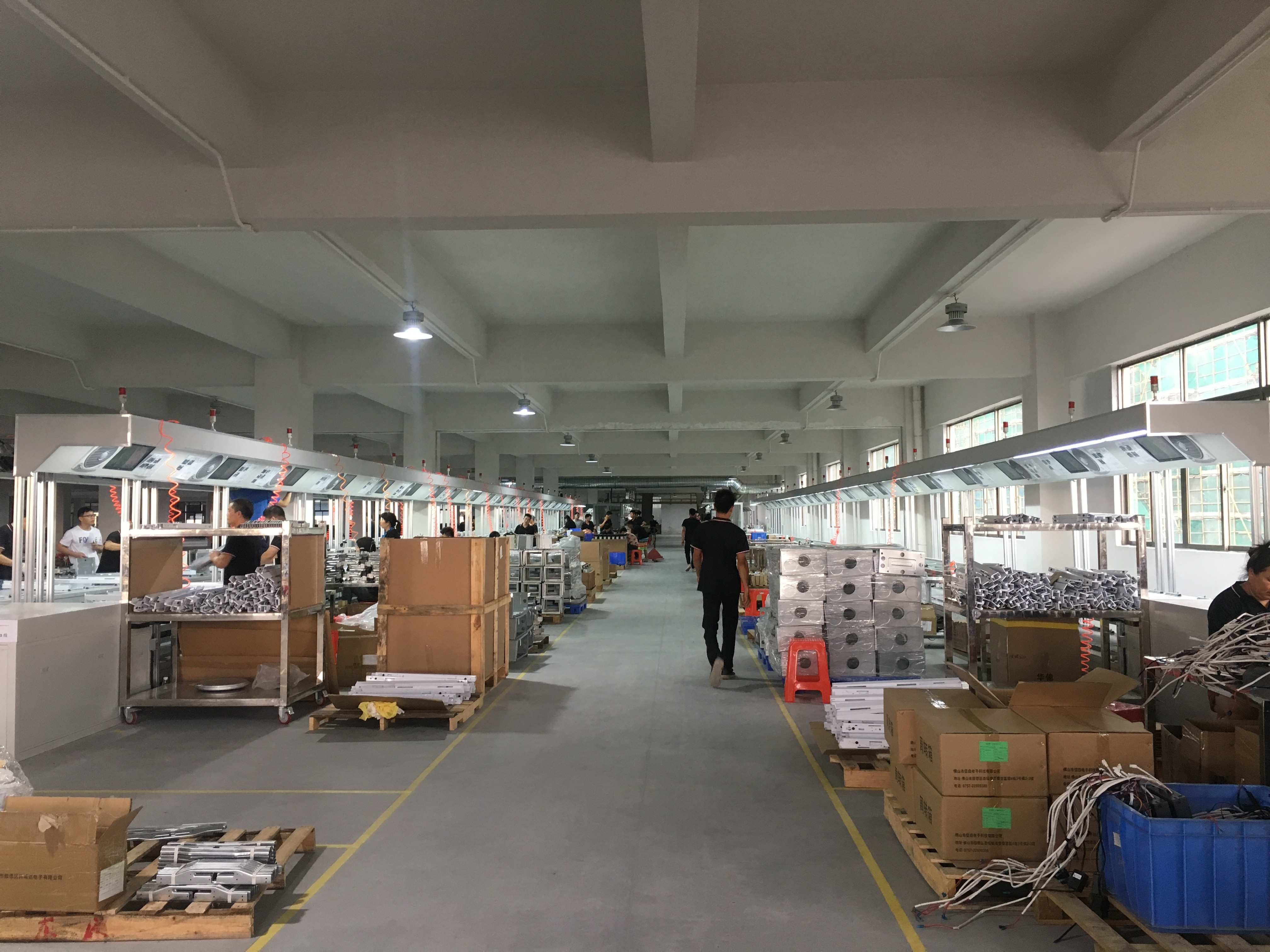

ASSEMBLU LINE

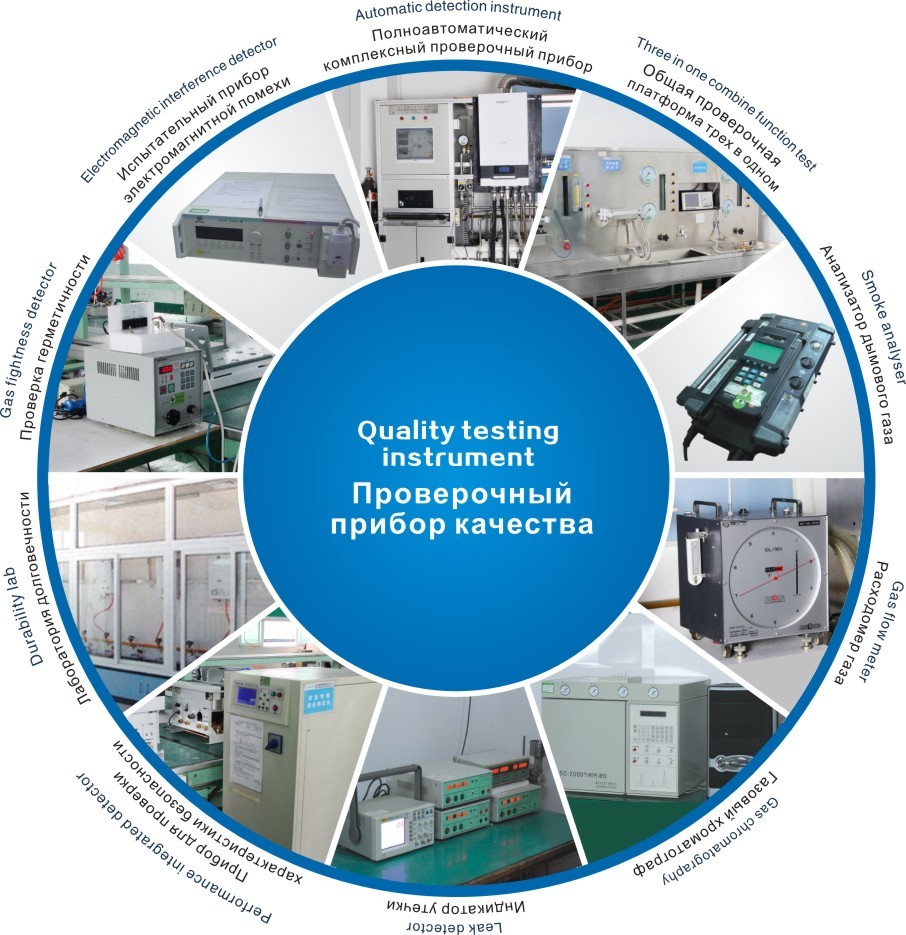

QUALITY TEST
